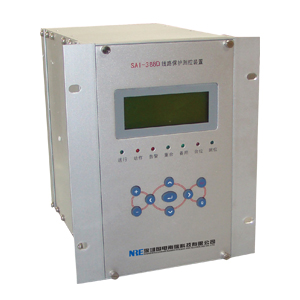

SAI-388D Digital Standby Power Switching Device
I. Overview
SAI-388D digital standby power source device functions are implemented using programmable logic graphical way , the flexibility to implement various investment programs prepared for a variety of voltage levels BZT control , while providing all the way to the two-stage overcurrent protection functions and the main configuration accelerates protection function :
Protection configuration
1 ) Preparation of various investment logic ( according to the project site design )
2 ) Preparation of sub- investment joint -cut function
3 ) over-current protection
4 ) charging protection
Control Function Deployment
5 ) 7 -way remote communication open into the strong current collection ( AC-DC Universal )
6 ) device power failure alarm , emergency signal device , the device alarm signal
7 ) breaker remote division , division and frequency statistics
8 ) analog telemetry : Ia, Ic, Ua, Ub, Uc, P, Q,, COSθ, F
9 ) power metering
10 ) 2 pulse inputs
11 ) one -way GPS time
Second, the principle that the protection of
2.1 , standby power source to function
Improve power system reliability methods generally have the following : First, the use of ring power supply reliability such a way that greatly improved, but the multi-stage ring detrimental to system stability , low-voltage grid in less used ; another way to improve the reliability of power supply is a dual power supply , which will bring with difficult issues such as protection . Therefore , in the low-voltage power grid in the wider selection of single power supply when the power failure is not the normal way to automatically switch to standby power supply in another way .
More types of wiring in the form of a standby power , standby logic cast a greater difference . Conventional devices are often prepared to vote in accordance with the specific requirements need to modify the logic of the computer equipment you need to prepare to vote to amend the relevant software , increasing the workload of the engineering design , equipment investment and reduce the reliability of the equipment . A device to be able to adapt to different requirements, SAI-388D digital standby power source device, graphical interface based programmable logic way to achieve functional equipment investment
Programmable logic equipment investment principles :
SAI-388D digital standby power source device ( hereinafter referred to as the standby switch device ) offers 13 analog inputs , 7 digital inputs , 8 voltage setpoint , six current setpoint , eight time setting , 5 paid to independent contact output. Value and all inputs can be a programmable control equipment investment and action elements . Equipment investment means every action logic control conditions can be divided into two categories: one is allowed to condition , and the other for the lockout condition . When permitted conditions are met, while blocking condition is not met , the equipment investment and exports action . To prevent equipment investment repetitive movements , drawing logical protection devices reclosing practices , set up a "charge" counter prepared to vote in every action logic , the " charge" conditions are:
A Not all permitted conditions are met ;
B and more than 10S.
After the above conditions are satisfied for the "charge " full state.
The counter " discharge" conditions:
A either a lockout condition is satisfied;
B or equipment investment action exports.
Any of the above conditions are met, the counter immediately "discharge ."
The following shows a composition prepared by cast action logic diagram :
As can be seen by the figure , prepared to vote every action logic device consists of three parts : Allow conditions lockout condition , charge and discharge logic. Charging and discharging part of the equipment investment means every action is the same logic, which constitutes full compliance with the foregoing conditions on the " charge" , " discharge" requirements and conditions , without the use of the re- configuration.
Therefore, users only need to determine the conditions allow , lockout conditions and related fixed value setting , the corresponding functional configuration backup cast ends. In determining the allowable conditions , latch condition, its constituent elements in the analog input section , each path can be set to a value or less value over action on the digital input , each channel can be set to high or low respectively. effective .
In theory, allow conditions and latch-up condition is a logical "not" relationship of mutual transformation , this point from the above example the figure is easy to see . However, due to equipment investment logic "charge" setting and "discharge" circuit , making conditions determine atresia following principles must be observed : When the device performs a predetermined process equipment investment logic , the result of a previous action should not result in execution of logic follow-up action logic "discharge ." Assume prepare voted device includes A, B and two action logic , a logic execution after its execution results meet B logic operating conditions . When normal operation, should ensure a lockout condition logic does not work , that does not counter the logic "discharge ." Similarly, after a logical action, the conditions should not constitute a B logic " discharge" .
Here are some typical standby power source implementations , other special equipment investment by way of logic diagram programming.
2.2 Preparation method 1 vote
Suitable for: mother of the switch or bridge equipment investment , joint cutting, mother of the two-stage charging protection and over-current .
The wiring diagram is as follows :
Equipment investment logic:
Section Ⅰ bus lost power, jump 1DL, under section Ⅱ bus with pressure situations , co- 3DL; Ⅱ bus segment loss of power , jump 2DL, in case there is pressure in the bus segment Ⅰ , co 3DL; 1DL steal or 2DL when jumping , combined 3DL ensure normal supply. To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
The program also takes into account two rounds of type Ⅰ, Ⅱ line overload associated load-shedding , these functions are independent of equipment investment logic can be cast back through the appropriate soft platen.
3 ) Analog subject access , open intake , out of the amount as follows :
a) Analog : Section Ⅰ bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Section Ⅱ bus voltage Uab2, Ubc2 (1x2, 1x4, 1x6);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL, 3DL switch position contact ( take TWJ, when the switch is tripped position , giving the device a binary input terminal positive ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16);
Switch 3 closing contacts (7x1-6x16);
OVERLOAD load shedding contacts (4x8-4x9), (4x10-4x11).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting control the way a word from the cast , the rest of the way to exit ; investment from the cast plate . 2, Ⅰ, Ⅱ bus segment with pressure ; into the line Ⅰ, Ⅱ has flow ; switch 1DL in close position , the switch 3DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the segments and segment Ⅰ Ⅰ bus voltage line current , delay T1, exit 7 action, jump 1DL; delay T3, together 3DL.
Instead, remove the section Ⅱ bus voltage and current section line Ⅱ delay T2, exit 8 action, jump 2DL; delay T3, together 3DL.
United cut logic:
1, Ⅰ line current is greater than the current value Idz3, or Ⅱ line current is greater than the current value Idz4, by the delay T4, the first round of joint cut exports. ( This logic is cut out by the cast back plate )
2, Ⅰ line current is greater than the current value Idz5, or Ⅱ line current is greater than the current value Idz6, by the delay T5, the second round of joint cut exports. ( This logic is cut out by the cast back plate )
Correlation value Description :
Control word : tuning of ways 1.
Ⅰ Ⅱ female parent or loss of pressure setpoint software is fixed at 30V, when Ⅰ Ⅱ parent or parent -phase line voltage is less than 30V, ruled Ⅰ Ⅱ female parent or loss of pressure . Ⅰ Ⅱ female parent or loss of pressure given value does not take 30V, can be set to a value Udz1 tuning , then logic diagram corresponding input components to correspond to Udz1.
Ⅰ Ⅱ parent or parent with pressure setpoint as 70V, when the mother Ⅰ or Ⅱ mother is greater than any one phase line voltage 70V , the sentence for the mother Ⅰ or Ⅱ mother with pressure . Ⅰ Ⅱ mother or the mother does not have to take the pressure setpoint 70V , you can come by setting Udz3 tuning , then logic diagram corresponding input components to correspond to Udz3.
Current value Idz1: Ⅰ line no current value for loss of pressure Ⅰ female discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Ⅱ line no current value for loss of pressure Ⅱ female discrimination (as distinct from PT disconnection ) ;
Current value Idz3: Ⅰ line overload I value segment for the first round of the load associated cut ;
Current value Idz4: Ⅱ line overload I value segment for the first round of the load associated cut ;
Current value Idz5: Ⅰ line overload II segment setpoint for the second round of joint shear load ;
Current value Idz6: Ⅱ line overload II segment setpoint for the second round of joint shear load ;
Current value Idz7: overcurrent stage Ⅰ value for current protection ;
Current value Idz8: overcurrent stage Ⅱ value for current protection ; ( and the acceleration value ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co 3DL delay time ;
Time value T4: The first round of load-shedding associated delay time ;
Time value T5: The second round of joint load-shedding time delay ;
Time value T6: overcurrent stage Ⅰ delay time ;
Time value T7: overcurrent Ⅱ segment delay ;
Time value T8: acceleration ( acceleration section Ⅱ ) delay time.
Its action logic is as follows :
2.3 Preparation of investment mode 2
Apply to : Line prepared from the cast . Scenario 1 form with system wiring . Line Ⅰ, Ⅱ each other back into the line .
Equipment investment logic:
Working line power failure , the corresponding circuit breaker in the aggregate position, there is pressure in the standby line , the case of the bridge switches work together bits jump line ; When the power supply backup power circuit breaker tripping together . To prevent disconnection PT prepared from the cast malfunction , failure to take the line current lockout criterion as the line pressure .
3 Analog subject access , open intake , out of the amount as follows :
a) Analog : Section Ⅰ bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Section Ⅱ bus voltage Uab2, Ubc2 (1x2, 1x4, 1x6);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast mode 2 , the remaining way to the exit ; investment from the cast plate .
2, Ⅰ, Ⅱ bus segment with pressure ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the line segment Ⅰ Ⅰ line voltage and current, delay T1, exit 7 action , jump 1DL; detection Ⅱ bus segment with pressure , delay T3, exit 6 action, together 2DL.
Instead, remove the line Ⅱ Ⅱ voltage and current into the line segment , delay T2, exit 8 action , jump 2DL; detection Ⅱ bus segment with pressure , delay T3, exit 5 action, together 1DL.
Correlation value Description :
Control word : tuning mode 2 .
Ⅰ Ⅱ female parent or loss of pressure setpoint software is fixed at 30V, when Ⅰ Ⅱ parent or parent -phase line voltage is less than 30V, ruled Ⅰ Ⅱ female parent or loss of pressure . Ⅰ Ⅱ female parent or loss of pressure given value does not take 30V, can be set to a value Udz1 tuning , then logic diagram corresponding input components to correspond to Udz1.
Voltage value Udz2: Line Ⅰ or Ⅱ line pressure setpoint there ;
Current value Idz1: Line Ⅰ no current value for loss of pressure Ⅰ female discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for loss of pressure Ⅱ female discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
Its action logic is as follows :
2.4 , prepare to vote the way 3
Applies to: line switch equipment investment . The wiring in the form below:
Equipment investment logic:
Bus lost power , 1DL in close position, in line Ⅱ under the pressure of circumstances has tripped 1DL close 2DL; bus lost power , 2DL in close position, in line with pressure situations Ⅰ jump 2DL close 1DL under ; steal when the power supply circuit breaker jump together standby power. To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
Analog subject access , open intake , out of the amount as follows :
7 ) Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
c) The above process can be decomposed into the following logic : Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast mode 3 , the rest of the way to exit ; investment from the cast plate .
2 , the bus has pressed ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the bus voltage and current into the line segment Ⅰ delay T1, exit 7 action , jump 1DL; detection circuit Ⅱ with pressure , delay T3, exit 6 action, together 2DL.
Instead, remove the bus voltage and current section line Ⅱ delay T2, exit 8 action , jump 2DL; detection circuit Ⅰ Pressure , delay T3, exit 5 action, together 1DL.
L.
Correlation value Description :
Control word : tuning of mode 3 .
Loss of pressure when the bus is fixed at a given value of software 30V, bus -phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
Voltage value Udz2: Line Ⅰ or Ⅱ line pressure setpoint there ;
Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
Its action logic is as follows
2.5 Preparation of investment mode 4
Equipment investment mode 4
Applies to: line switch equipment investment . The wiring 3 much the same form and manner , except that the lines are not installed Ⅰ and Line Ⅱ PT.
Equipment investment logic:
Bus lost power , 1DL in close position, jump 1DL close 2DL; bus lost power , 2DL in close position, jump 2DL close 1DL; When the power supply backup power circuit breaker tripping together . To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast Mode 4 , the remaining way to the exit ; investment from the cast plate .
2 , the bus has pressed ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the bus voltage and current into the line segment Ⅰ delay T1, exit 7 action , jump 1DL; delay T3, exit 6 action, together 2DL.
Instead, remove the bus voltage and current section line Ⅱ delay T2, exit 8 action , jump 2DL; delay T3, exit 5 action, together 1DL.
Action Logic 1 : bus voltage is less than the bus lost pressure value , the line current is less than Idz1 Ⅰ as conditions allow ; 1DL in the tripped position as the lockout condition ; T1 delay to jump 1DL.
Action Logic 2: The bus voltage is less than the bus lost pressure value , the line current is less than Idz2 Ⅱ as conditions allow ; 2DL in the tripped position as the lockout condition ; T2 delay to jump 2DL.
Action Logic 3 : bus bus voltage is less than the pressure loss value , 1DL in the tripped position as conditions allow ; 2DL in aggregate bit as latch-up condition ; delay together with T3 2DL.
Bus or bus voltage is less than the pressure loss value , 2DL in the tripped position as conditions allow ; 1DL in aggregate bit as latch-up condition ; delay together with T3 1DL.
Analog subject access , open intake , out of the amount as follows :
a) Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
Correlation value Description :
1 ) Control Word : Setting of mode 4 .
Loss of pressure when the bus is fixed at a given value of software 30V, bus -phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
2.6 , prepare to vote the way 5
Applies to: transformer equipment investment . The wiring in the form below:
Equipment investment logic:
Bus power failure , the corresponding low-pressure side of the circuit breaker in the main transformer combined position in the high-pressure side of the standby transformer tripped work under the pressure of circumstances transformer low voltage side of the circuit breaker , co spare transformer low voltage side circuit breakers; jump when working together to steal spare transformer low-voltage transformer side of the circuit breaker. To prevent disconnection PT prepared from the cast malfunction , take the main transformer low side current lockout criterion bus as loss of pressure .
Correlation value Description :
d) Control Word : 5 -tuning of ways .
e) When the bus lost pressure setpoint software is fixed at 30V, the bus three-phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
f) Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
g) the current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
h) the time value T1: jump 3DL delay time ;
i) the time value T2: jump 4DL delay time ;
j) the time value T3: co 3DL delay time.
k) the time value T4: co- 4DL delay time.
2.7 , prepare to vote the way 6
Applies to: load balancing mother of equipment investment . The wiring in the form below:
Equipment investment logic:
Energized bus Ⅱ , Ⅰ mother with pressure , combined 5DL; Ⅰ mother lost pressure , Ⅱ mother with pressure , Ⅳ mother without pressure , combined 5DL; Ⅰ mother lost pressure , Ⅱ mother with pressure , Ⅳ mother without pressure , 6DL prepared from the cast no blocking signal , jump 3DL, together 5DL, balanced Ⅱ, Ⅲ main variable load . To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
2.8 Accessibility
2.8.1 Protection
To simplify the Screen Design and make full use of the device itself is characterized by abundant hardware resources with two overcurrent and charge protection, these functions are independent of equipment investment logic can be cast back through the appropriate soft platen.
Protection logic 1: mother of the switching current is greater than or bridge overcurrent stage Ⅰ value Idz7, by the delay T6 export tripping and closing lockout prepared from the cast . ( This logic is overcurrent stage Ⅰ cast back plate )
Protection logic 2 : mother of the switching current is greater than or bridge overcurrent Ⅱ segment value Idz8, T7 exported by the delay tripping and closing lockout prepared from the cast . ( This logic is overcurrent stage Ⅱ cast back plate )
Protection logic 3 : Charging protection, mother of the bridge or switch current is greater than the acceleration value ( overcurrent Ⅱ segment value Idz8), T8 exported by the delay tripping and closing lockout prepared from the cast . ( This logic is cast back by the charging plate )
Setting value :
Time value T6: Section Ⅰ overcurrent delay time.
Time value T7: overcurrent Ⅱ segment delay time.
Time value T8: charging protection Acceleration ( acceleration section Ⅱ ) delay time.
2.8.2 Auxiliary Alarm Function
a) PT disconnection alarm
One of the following three conditions are met, the device reported hair "PT disconnected " message and warning lights lit :
Section 1. Ⅰ bus negative sequence voltage greater than 8V, sentenced to two-phase or single-phase PT disconnected.
Section 2. Ⅰ bus negative sequence voltage is less than 8V, Section Ⅰ bus line voltage is only one or two larger than 70V, sentenced to two-phase or single-phase PT disconnected.
Section 3. Ⅱ bus negative sequence voltage greater than 8V, sentenced to two-phase or single-phase PT disconnected.
Section 4. Ⅱ bus negative sequence voltage is less than 8V, Section Ⅰ bus line voltage is only one or two larger than 70V, sentenced to two-phase or single-phase PT disconnected.
PT disconnection detection function can be controlled by PT disconnection alarm word cast back .
U12 Ⅰ bus segment which is negative sequence voltage , Uab1, Ubc1, Uca1 for the segment Ⅰ bus line voltage.
U22 is negative sequence voltage bus segment Ⅱ , Uab2, Ubc2, Uca2 for the segment Ⅱ bus line voltage.
b) Control loop break
Break switch position in a non- jump -bit and non- co- bit delay reported by the 10S control loop break alarm .
Control loop break detection function can be controlled by controlling the back break alarm word cast back .
2.9 , data record
Function with SAI-388DL.
2.10 , remote telemetry, remote control
Function with SAI-388DL.
Third, the setting and press apparatus
3.1 , setting the value of a list and description of
No. Name value range Unit Remarks
A control word of a 0000 ~ FFFF no
2 control word二0000 ~ FFFF no spare
3 voltage setpoint Udz1 2.0 ~ 120.0 V
4 voltage setpoint Udz2 2.0 ~ 120.0 V
5 voltage setpoint Udz3 2.0 ~ 120.0 V
6 voltage setpoint Udz4 2.0 ~ 120.0 V
7 voltage setpoint Udz5 2.0 ~ 120.0 V
8 voltage setpoint Udz6 2.0 ~ 120.0 V
9 current value Idz1 0.02 ~ 100.0 A
10 Current value Idz2 0.02 ~ 100.0 A
11 current value Idz3 0.02 ~ 100.0 A
12 Current value Idz4 0.02 ~ 100.0 A
13 current value Idz5 0.02 ~ 100.0 A
14 current value Idz6 0.02 ~ 100.0 A
15 current value Idz7 0.02 ~ 100.0 A
16 current value Idz8 0.02 ~ 100.0 A
17 time value T1 0.0 ~ 60.0 S
18 time value T2 0.0 ~ 60.0 S
19 time value T3 0.0 ~ 60.0 S
20 Time value T4 0.0 ~ 60.0 S
21 time value T5 0.0 ~ 60.0 S
22 time setting T6 0.0 ~ 60.0 S
23 time setting T7 0.0 ~ 60.0 S
24 time setting T8 0.0 ~ 60.0 S
25 CT ratio of 0.001 to 5.0
26 PT ratio of 0.01 to 5.0 moot
Control word 1 Definition:
Meaning Bit 0 is set to 1 when the meaning set
15 ways to select a special equipment not choose to vote
14 devices CT = 1A device CT = 5A
13 break alarm control back into the control back to the disconnection warning exit
12 PT disconnection alarm inputs PT disconnection alarm exit
11 Reserved Reserved
10 Reserved Reserved
9 Reserved Reserved
8 Reserved Reserved
7 Reserved Reserved
7 6 selection mode is not selected
5 Select mode 6 is not selected
4 Select mode 5 is not selected
3 Select the mode 4 is not selected
2 Select mode 3 is not selected
1 Select mode 2 is not selected
0 Select mode 1 is not selected
Note : Control word 1 0-6 only have a "1" , and there must be a "1" , except when the election in a special way KG1.15S..
Description :
1 . CT ratio for the specific measurement ratio , tuning methods : patients , primary CT ratio of 600 /5 = 120 , the entire set of 120/1000 = 0.12; 10KV PT ratio 10000/ 100 = 100 , the entire set at 100 / 1000 = 0.10 .
2 . More protection functions do not function , only to completely exit the soft plate or by exiting the corresponding control word , do not need special settings for a given value of the corresponding specialized functions.
3.2 , soft list and description of the platen
Corresponding function name plate
The total investment in equipment investment and equipment investment features cast back
Union cut back investment -linked cut function
Overcurrent protection function Ⅰ overcurrent I cast back
II Ⅱ overcurrent overcurrent protection cast back
Charging protection charging protection cast back
Spare plate 6
Spare plate 7
Spare plate 8
Spare plate 9
Spare plate 10
SAI-388D digital standby power source device functions are implemented using programmable logic graphical way , the flexibility to implement various investment programs prepared for a variety of voltage levels BZT control , while providing all the way to the two-stage overcurrent protection functions and the main configuration accelerates protection function :
Protection configuration
1 ) Preparation of various investment logic ( according to the project site design )
2 ) Preparation of sub- investment joint -cut function
3 ) over-current protection
4 ) charging protection
Control Function Deployment
5 ) 7 -way remote communication open into the strong current collection ( AC-DC Universal )
6 ) device power failure alarm , emergency signal device , the device alarm signal
7 ) breaker remote division , division and frequency statistics
8 ) analog telemetry : Ia, Ic, Ua, Ub, Uc, P, Q,, COSθ, F
9 ) power metering
10 ) 2 pulse inputs
11 ) one -way GPS time
Second, the principle that the protection of
2.1 , standby power source to function
Improve power system reliability methods generally have the following : First, the use of ring power supply reliability such a way that greatly improved, but the multi-stage ring detrimental to system stability , low-voltage grid in less used ; another way to improve the reliability of power supply is a dual power supply , which will bring with difficult issues such as protection . Therefore , in the low-voltage power grid in the wider selection of single power supply when the power failure is not the normal way to automatically switch to standby power supply in another way .
More types of wiring in the form of a standby power , standby logic cast a greater difference . Conventional devices are often prepared to vote in accordance with the specific requirements need to modify the logic of the computer equipment you need to prepare to vote to amend the relevant software , increasing the workload of the engineering design , equipment investment and reduce the reliability of the equipment . A device to be able to adapt to different requirements, SAI-388D digital standby power source device, graphical interface based programmable logic way to achieve functional equipment investment
Programmable logic equipment investment principles :
SAI-388D digital standby power source device ( hereinafter referred to as the standby switch device ) offers 13 analog inputs , 7 digital inputs , 8 voltage setpoint , six current setpoint , eight time setting , 5 paid to independent contact output. Value and all inputs can be a programmable control equipment investment and action elements . Equipment investment means every action logic control conditions can be divided into two categories: one is allowed to condition , and the other for the lockout condition . When permitted conditions are met, while blocking condition is not met , the equipment investment and exports action . To prevent equipment investment repetitive movements , drawing logical protection devices reclosing practices , set up a "charge" counter prepared to vote in every action logic , the " charge" conditions are:
A Not all permitted conditions are met ;
B and more than 10S.
After the above conditions are satisfied for the "charge " full state.
The counter " discharge" conditions:
A either a lockout condition is satisfied;
B or equipment investment action exports.
Any of the above conditions are met, the counter immediately "discharge ."
The following shows a composition prepared by cast action logic diagram :
As can be seen by the figure , prepared to vote every action logic device consists of three parts : Allow conditions lockout condition , charge and discharge logic. Charging and discharging part of the equipment investment means every action is the same logic, which constitutes full compliance with the foregoing conditions on the " charge" , " discharge" requirements and conditions , without the use of the re- configuration.
Therefore, users only need to determine the conditions allow , lockout conditions and related fixed value setting , the corresponding functional configuration backup cast ends. In determining the allowable conditions , latch condition, its constituent elements in the analog input section , each path can be set to a value or less value over action on the digital input , each channel can be set to high or low respectively. effective .
In theory, allow conditions and latch-up condition is a logical "not" relationship of mutual transformation , this point from the above example the figure is easy to see . However, due to equipment investment logic "charge" setting and "discharge" circuit , making conditions determine atresia following principles must be observed : When the device performs a predetermined process equipment investment logic , the result of a previous action should not result in execution of logic follow-up action logic "discharge ." Assume prepare voted device includes A, B and two action logic , a logic execution after its execution results meet B logic operating conditions . When normal operation, should ensure a lockout condition logic does not work , that does not counter the logic "discharge ." Similarly, after a logical action, the conditions should not constitute a B logic " discharge" .
Here are some typical standby power source implementations , other special equipment investment by way of logic diagram programming.
2.2 Preparation method 1 vote
Suitable for: mother of the switch or bridge equipment investment , joint cutting, mother of the two-stage charging protection and over-current .
The wiring diagram is as follows :
Equipment investment logic:
Section Ⅰ bus lost power, jump 1DL, under section Ⅱ bus with pressure situations , co- 3DL; Ⅱ bus segment loss of power , jump 2DL, in case there is pressure in the bus segment Ⅰ , co 3DL; 1DL steal or 2DL when jumping , combined 3DL ensure normal supply. To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
The program also takes into account two rounds of type Ⅰ, Ⅱ line overload associated load-shedding , these functions are independent of equipment investment logic can be cast back through the appropriate soft platen.
3 ) Analog subject access , open intake , out of the amount as follows :
a) Analog : Section Ⅰ bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Section Ⅱ bus voltage Uab2, Ubc2 (1x2, 1x4, 1x6);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL, 3DL switch position contact ( take TWJ, when the switch is tripped position , giving the device a binary input terminal positive ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16);
Switch 3 closing contacts (7x1-6x16);
OVERLOAD load shedding contacts (4x8-4x9), (4x10-4x11).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting control the way a word from the cast , the rest of the way to exit ; investment from the cast plate . 2, Ⅰ, Ⅱ bus segment with pressure ; into the line Ⅰ, Ⅱ has flow ; switch 1DL in close position , the switch 3DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the segments and segment Ⅰ Ⅰ bus voltage line current , delay T1, exit 7 action, jump 1DL; delay T3, together 3DL.
Instead, remove the section Ⅱ bus voltage and current section line Ⅱ delay T2, exit 8 action, jump 2DL; delay T3, together 3DL.
United cut logic:
1, Ⅰ line current is greater than the current value Idz3, or Ⅱ line current is greater than the current value Idz4, by the delay T4, the first round of joint cut exports. ( This logic is cut out by the cast back plate )
2, Ⅰ line current is greater than the current value Idz5, or Ⅱ line current is greater than the current value Idz6, by the delay T5, the second round of joint cut exports. ( This logic is cut out by the cast back plate )
Correlation value Description :
Control word : tuning of ways 1.
Ⅰ Ⅱ female parent or loss of pressure setpoint software is fixed at 30V, when Ⅰ Ⅱ parent or parent -phase line voltage is less than 30V, ruled Ⅰ Ⅱ female parent or loss of pressure . Ⅰ Ⅱ female parent or loss of pressure given value does not take 30V, can be set to a value Udz1 tuning , then logic diagram corresponding input components to correspond to Udz1.
Ⅰ Ⅱ parent or parent with pressure setpoint as 70V, when the mother Ⅰ or Ⅱ mother is greater than any one phase line voltage 70V , the sentence for the mother Ⅰ or Ⅱ mother with pressure . Ⅰ Ⅱ mother or the mother does not have to take the pressure setpoint 70V , you can come by setting Udz3 tuning , then logic diagram corresponding input components to correspond to Udz3.
Current value Idz1: Ⅰ line no current value for loss of pressure Ⅰ female discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Ⅱ line no current value for loss of pressure Ⅱ female discrimination (as distinct from PT disconnection ) ;
Current value Idz3: Ⅰ line overload I value segment for the first round of the load associated cut ;
Current value Idz4: Ⅱ line overload I value segment for the first round of the load associated cut ;
Current value Idz5: Ⅰ line overload II segment setpoint for the second round of joint shear load ;
Current value Idz6: Ⅱ line overload II segment setpoint for the second round of joint shear load ;
Current value Idz7: overcurrent stage Ⅰ value for current protection ;
Current value Idz8: overcurrent stage Ⅱ value for current protection ; ( and the acceleration value ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co 3DL delay time ;
Time value T4: The first round of load-shedding associated delay time ;
Time value T5: The second round of joint load-shedding time delay ;
Time value T6: overcurrent stage Ⅰ delay time ;
Time value T7: overcurrent Ⅱ segment delay ;
Time value T8: acceleration ( acceleration section Ⅱ ) delay time.
Its action logic is as follows :
2.3 Preparation of investment mode 2
Apply to : Line prepared from the cast . Scenario 1 form with system wiring . Line Ⅰ, Ⅱ each other back into the line .
Equipment investment logic:
Working line power failure , the corresponding circuit breaker in the aggregate position, there is pressure in the standby line , the case of the bridge switches work together bits jump line ; When the power supply backup power circuit breaker tripping together . To prevent disconnection PT prepared from the cast malfunction , failure to take the line current lockout criterion as the line pressure .
3 Analog subject access , open intake , out of the amount as follows :
a) Analog : Section Ⅰ bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Section Ⅱ bus voltage Uab2, Ubc2 (1x2, 1x4, 1x6);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast mode 2 , the remaining way to the exit ; investment from the cast plate .
2, Ⅰ, Ⅱ bus segment with pressure ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the line segment Ⅰ Ⅰ line voltage and current, delay T1, exit 7 action , jump 1DL; detection Ⅱ bus segment with pressure , delay T3, exit 6 action, together 2DL.
Instead, remove the line Ⅱ Ⅱ voltage and current into the line segment , delay T2, exit 8 action , jump 2DL; detection Ⅱ bus segment with pressure , delay T3, exit 5 action, together 1DL.
Correlation value Description :
Control word : tuning mode 2 .
Ⅰ Ⅱ female parent or loss of pressure setpoint software is fixed at 30V, when Ⅰ Ⅱ parent or parent -phase line voltage is less than 30V, ruled Ⅰ Ⅱ female parent or loss of pressure . Ⅰ Ⅱ female parent or loss of pressure given value does not take 30V, can be set to a value Udz1 tuning , then logic diagram corresponding input components to correspond to Udz1.
Voltage value Udz2: Line Ⅰ or Ⅱ line pressure setpoint there ;
Current value Idz1: Line Ⅰ no current value for loss of pressure Ⅰ female discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for loss of pressure Ⅱ female discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
Its action logic is as follows :
2.4 , prepare to vote the way 3
Applies to: line switch equipment investment . The wiring in the form below:
Equipment investment logic:
Bus lost power , 1DL in close position, in line Ⅱ under the pressure of circumstances has tripped 1DL close 2DL; bus lost power , 2DL in close position, in line with pressure situations Ⅰ jump 2DL close 1DL under ; steal when the power supply circuit breaker jump together standby power. To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
Analog subject access , open intake , out of the amount as follows :
7 ) Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
c) The above process can be decomposed into the following logic : Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Ⅰ line voltage U1 (1x7, 1x9);
Ⅱ line voltage U2 (1x8, 1x10);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast mode 3 , the rest of the way to exit ; investment from the cast plate .
2 , the bus has pressed ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the bus voltage and current into the line segment Ⅰ delay T1, exit 7 action , jump 1DL; detection circuit Ⅱ with pressure , delay T3, exit 6 action, together 2DL.
Instead, remove the bus voltage and current section line Ⅱ delay T2, exit 8 action , jump 2DL; detection circuit Ⅰ Pressure , delay T3, exit 5 action, together 1DL.
L.
Correlation value Description :
Control word : tuning of mode 3 .
Loss of pressure when the bus is fixed at a given value of software 30V, bus -phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
Voltage value Udz2: Line Ⅰ or Ⅱ line pressure setpoint there ;
Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
Its action logic is as follows
2.5 Preparation of investment mode 4
Equipment investment mode 4
Applies to: line switch equipment investment . The wiring 3 much the same form and manner , except that the lines are not installed Ⅰ and Line Ⅱ PT.
Equipment investment logic:
Bus lost power , 1DL in close position, jump 1DL close 2DL; bus lost power , 2DL in close position, jump 2DL close 1DL; When the power supply backup power circuit breaker tripping together . To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
The above process can be decomposed into the following logic:
Charging conditions :
1 , setting the control word from the cast Mode 4 , the remaining way to the exit ; investment from the cast plate .
2 , the bus has pressed ; Ⅰ have flow into the line ; switch 1DL in close position , the switch 2DL in quintile ; no lockout condition . Meet the above conditions the panel from the cast steady light flashes 10 seconds after charging is completed.
3 , remove the bus voltage and current into the line segment Ⅰ delay T1, exit 7 action , jump 1DL; delay T3, exit 6 action, together 2DL.
Instead, remove the bus voltage and current section line Ⅱ delay T2, exit 8 action , jump 2DL; delay T3, exit 5 action, together 1DL.
Action Logic 1 : bus voltage is less than the bus lost pressure value , the line current is less than Idz1 Ⅰ as conditions allow ; 1DL in the tripped position as the lockout condition ; T1 delay to jump 1DL.
Action Logic 2: The bus voltage is less than the bus lost pressure value , the line current is less than Idz2 Ⅱ as conditions allow ; 2DL in the tripped position as the lockout condition ; T2 delay to jump 2DL.
Action Logic 3 : bus bus voltage is less than the pressure loss value , 1DL in the tripped position as conditions allow ; 2DL in aggregate bit as latch-up condition ; delay together with T3 2DL.
Bus or bus voltage is less than the pressure loss value , 2DL in the tripped position as conditions allow ; 1DL in aggregate bit as latch-up condition ; delay together with T3 1DL.
Analog subject access , open intake , out of the amount as follows :
a) Analog : bus voltage Uab1, Ubc1 (1x1, 1x3, 1x5);
Line Ⅰ current I1 (1x15-1x16);
Line Ⅱ current I2 (1x17-1x18).
b) open intake : 1DL, 2DL switch position contact ( take TWJ, when the switch is in the tripped position to the device terminals open into a positive amount ) . Atresia of the equipment investment , open into the amount of 4x1.
c) Open the amount of :
Switch 1 closing contacts (4x8-4x9);
Switch 2 closing contacts (4x10-4x11);
Switching a trip contact (4x13-4x14);
Switch 2 trip contacts (4x15-4x16).
Correlation value Description :
1 ) Control Word : Setting of mode 4 .
Loss of pressure when the bus is fixed at a given value of software 30V, bus -phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
Time value T1: jump 1DL delay time ;
Time value T2: jump 2DL delay time ;
Time value T3: co- 1DL or 2DL delay time.
2.6 , prepare to vote the way 5
Applies to: transformer equipment investment . The wiring in the form below:
Equipment investment logic:
Bus power failure , the corresponding low-pressure side of the circuit breaker in the main transformer combined position in the high-pressure side of the standby transformer tripped work under the pressure of circumstances transformer low voltage side of the circuit breaker , co spare transformer low voltage side circuit breakers; jump when working together to steal spare transformer low-voltage transformer side of the circuit breaker. To prevent disconnection PT prepared from the cast malfunction , take the main transformer low side current lockout criterion bus as loss of pressure .
Correlation value Description :
d) Control Word : 5 -tuning of ways .
e) When the bus lost pressure setpoint software is fixed at 30V, the bus three-phase line voltage is less than 30V, sentenced for the bus lost pressure . Bus lost pressure setpoint not take 30V, can be given to the setting value Udz1 , then logic diagram corresponding input components to correspond to Udz1;
f) Current value Idz1: Line Ⅰ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
g) the current value Idz2: Line Ⅱ no current value for the bus lost pressure discrimination (as distinct from PT disconnection ) ;
h) the time value T1: jump 3DL delay time ;
i) the time value T2: jump 4DL delay time ;
j) the time value T3: co 3DL delay time.
k) the time value T4: co- 4DL delay time.
2.7 , prepare to vote the way 6
Applies to: load balancing mother of equipment investment . The wiring in the form below:
Equipment investment logic:
Energized bus Ⅱ , Ⅰ mother with pressure , combined 5DL; Ⅰ mother lost pressure , Ⅱ mother with pressure , Ⅳ mother without pressure , combined 5DL; Ⅰ mother lost pressure , Ⅱ mother with pressure , Ⅳ mother without pressure , 6DL prepared from the cast no blocking signal , jump 3DL, together 5DL, balanced Ⅱ, Ⅲ main variable load . To prevent disconnection PT prepared from the cast malfunction , take the bus line current as pressure loss atresia criterion .
2.8 Accessibility
2.8.1 Protection
To simplify the Screen Design and make full use of the device itself is characterized by abundant hardware resources with two overcurrent and charge protection, these functions are independent of equipment investment logic can be cast back through the appropriate soft platen.
Protection logic 1: mother of the switching current is greater than or bridge overcurrent stage Ⅰ value Idz7, by the delay T6 export tripping and closing lockout prepared from the cast . ( This logic is overcurrent stage Ⅰ cast back plate )
Protection logic 2 : mother of the switching current is greater than or bridge overcurrent Ⅱ segment value Idz8, T7 exported by the delay tripping and closing lockout prepared from the cast . ( This logic is overcurrent stage Ⅱ cast back plate )
Protection logic 3 : Charging protection, mother of the bridge or switch current is greater than the acceleration value ( overcurrent Ⅱ segment value Idz8), T8 exported by the delay tripping and closing lockout prepared from the cast . ( This logic is cast back by the charging plate )
Setting value :
Time value T6: Section Ⅰ overcurrent delay time.
Time value T7: overcurrent Ⅱ segment delay time.
Time value T8: charging protection Acceleration ( acceleration section Ⅱ ) delay time.
2.8.2 Auxiliary Alarm Function
a) PT disconnection alarm
One of the following three conditions are met, the device reported hair "PT disconnected " message and warning lights lit :
Section 1. Ⅰ bus negative sequence voltage greater than 8V, sentenced to two-phase or single-phase PT disconnected.
Section 2. Ⅰ bus negative sequence voltage is less than 8V, Section Ⅰ bus line voltage is only one or two larger than 70V, sentenced to two-phase or single-phase PT disconnected.
Section 3. Ⅱ bus negative sequence voltage greater than 8V, sentenced to two-phase or single-phase PT disconnected.
Section 4. Ⅱ bus negative sequence voltage is less than 8V, Section Ⅰ bus line voltage is only one or two larger than 70V, sentenced to two-phase or single-phase PT disconnected.
PT disconnection detection function can be controlled by PT disconnection alarm word cast back .
U12 Ⅰ bus segment which is negative sequence voltage , Uab1, Ubc1, Uca1 for the segment Ⅰ bus line voltage.
U22 is negative sequence voltage bus segment Ⅱ , Uab2, Ubc2, Uca2 for the segment Ⅱ bus line voltage.
b) Control loop break
Break switch position in a non- jump -bit and non- co- bit delay reported by the 10S control loop break alarm .
Control loop break detection function can be controlled by controlling the back break alarm word cast back .
2.9 , data record
Function with SAI-388DL.
2.10 , remote telemetry, remote control
Function with SAI-388DL.
Third, the setting and press apparatus
3.1 , setting the value of a list and description of
No. Name value range Unit Remarks
A control word of a 0000 ~ FFFF no
2 control word二0000 ~ FFFF no spare
3 voltage setpoint Udz1 2.0 ~ 120.0 V
4 voltage setpoint Udz2 2.0 ~ 120.0 V
5 voltage setpoint Udz3 2.0 ~ 120.0 V
6 voltage setpoint Udz4 2.0 ~ 120.0 V
7 voltage setpoint Udz5 2.0 ~ 120.0 V
8 voltage setpoint Udz6 2.0 ~ 120.0 V
9 current value Idz1 0.02 ~ 100.0 A
10 Current value Idz2 0.02 ~ 100.0 A
11 current value Idz3 0.02 ~ 100.0 A
12 Current value Idz4 0.02 ~ 100.0 A
13 current value Idz5 0.02 ~ 100.0 A
14 current value Idz6 0.02 ~ 100.0 A
15 current value Idz7 0.02 ~ 100.0 A
16 current value Idz8 0.02 ~ 100.0 A
17 time value T1 0.0 ~ 60.0 S
18 time value T2 0.0 ~ 60.0 S
19 time value T3 0.0 ~ 60.0 S
20 Time value T4 0.0 ~ 60.0 S
21 time value T5 0.0 ~ 60.0 S
22 time setting T6 0.0 ~ 60.0 S
23 time setting T7 0.0 ~ 60.0 S
24 time setting T8 0.0 ~ 60.0 S
25 CT ratio of 0.001 to 5.0
26 PT ratio of 0.01 to 5.0 moot
Control word 1 Definition:
Meaning Bit 0 is set to 1 when the meaning set
15 ways to select a special equipment not choose to vote
14 devices CT = 1A device CT = 5A
13 break alarm control back into the control back to the disconnection warning exit
12 PT disconnection alarm inputs PT disconnection alarm exit
11 Reserved Reserved
10 Reserved Reserved
9 Reserved Reserved
8 Reserved Reserved
7 Reserved Reserved
7 6 selection mode is not selected
5 Select mode 6 is not selected
4 Select mode 5 is not selected
3 Select the mode 4 is not selected
2 Select mode 3 is not selected
1 Select mode 2 is not selected
0 Select mode 1 is not selected
Note : Control word 1 0-6 only have a "1" , and there must be a "1" , except when the election in a special way KG1.15S..
Description :
1 . CT ratio for the specific measurement ratio , tuning methods : patients , primary CT ratio of 600 /5 = 120 , the entire set of 120/1000 = 0.12; 10KV PT ratio 10000/ 100 = 100 , the entire set at 100 / 1000 = 0.10 .
2 . More protection functions do not function , only to completely exit the soft plate or by exiting the corresponding control word , do not need special settings for a given value of the corresponding specialized functions.
3.2 , soft list and description of the platen
Corresponding function name plate
The total investment in equipment investment and equipment investment features cast back
Union cut back investment -linked cut function
Overcurrent protection function Ⅰ overcurrent I cast back
II Ⅱ overcurrent overcurrent protection cast back
Charging protection charging protection cast back
Spare plate 6
Spare plate 7
Spare plate 8
Spare plate 9
Spare plate 10
